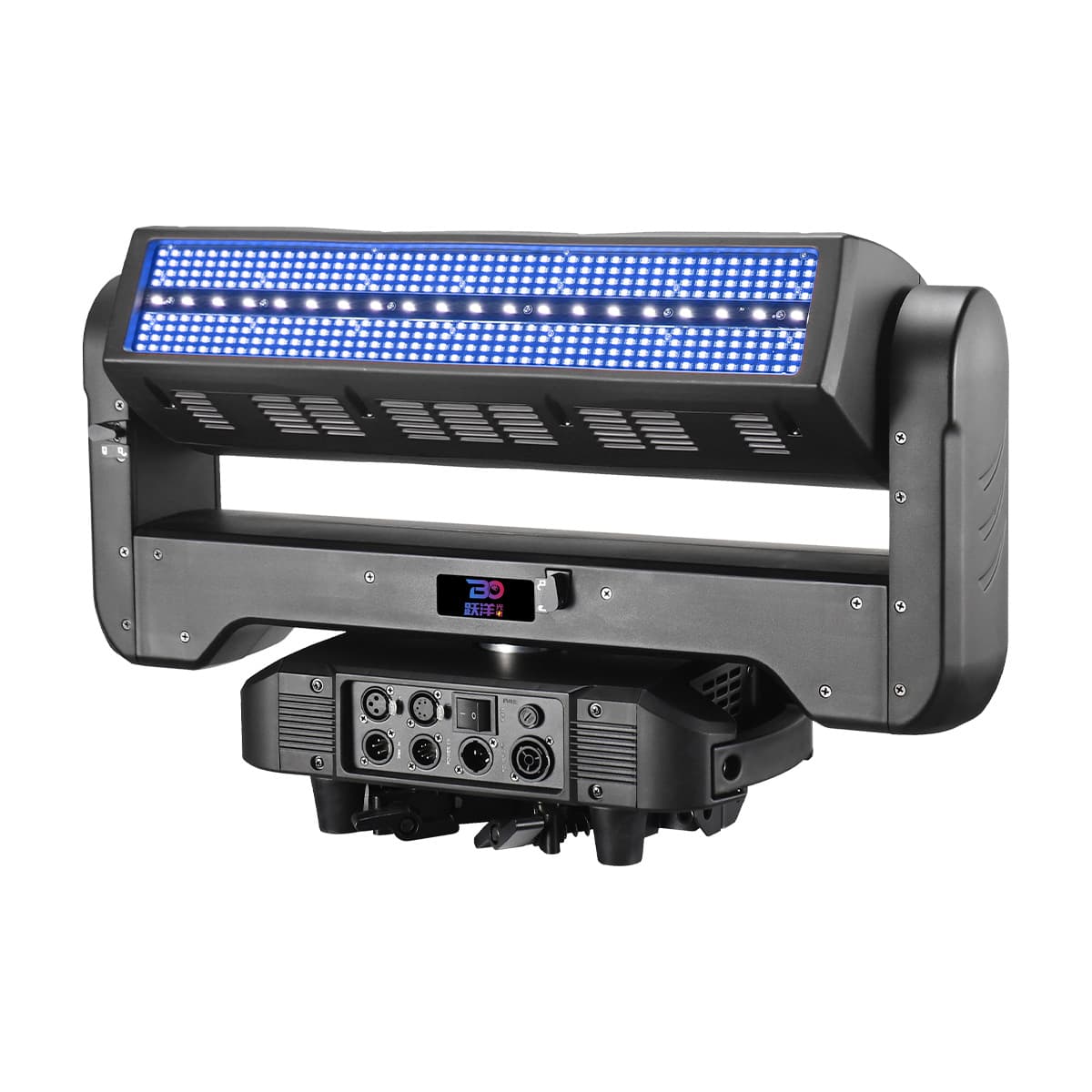

Double Face Strobe & Zoom

Unleash immersive versatility with this dual-face powerhouse!
The zoom wash face (6x60W RGBW LEDs) delivers vibrant 3.5°–45° washes, while the strobe face (20x10W white + 384×0.5W RGB LEDs) creates explosive flashes and pixel-mapped textures.
Built for high-impact shows, its infinite pan/tilt rotation (16-bit precision) and magnetic reset system ensure flawless, noiseless repositioning.

Why Choose It:

Hybrid Brilliance – Combine beam, wash, and 25Hz strobe effects in one.
Smart Cooling – Auto-brightness adjustment + temperature-controlled fans maximize LED lifespan.
Pro Control – 54 DMX channels (RDM-ready) with 4 dimming modes for live flexibility.
Tour Tough – Global voltage + 2-in-1 flight case (68.5kg) streamline load-ins.

Ideal For: Concerts, events, and stages needing dual-effect impact, studio-grade dimming, and rapid setup in a 19.5kg frame.

Beyond 660DZ

Double Face Strobe & Zoom

Light Source: 6*60W 4in1 RGBW LED; 20*10W white led+384*0.5W 3in1 RGB LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V， 50- 60Hz

Power Consumption: 700W

Beam Angle: 3.5°-45°

Control Modes: DMX512/ Auto/ Sound/ Master/ Manual/ RDM/ ArtNet(optional)

DMX Channel: 34/ 54Channel

Protection Rating: IP20

Display: 1.8-inch LED color display

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540°accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270°accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 4 units（230V，50Hz） 2.5mm² power cable; 2 units（110V，60Hz） 2.5mm² power cable

Dimension: 640*210*369mm

Net Weight: 19.5 kg

Carton Package: 735*505*300 mm 1in1 GW.: 23 kg;

Flight Case: 700*640*595 mm 2in1 GW.: 69.35 kg

Features: Full light range dimming, 65536-level dimming accuracy; fast strobe 1-25 Hz; single-point control of lamp beads; three-in-one effects of dyeing, beam, and bee eye; preset multiple color macro functions; preset multiple effect macro functions

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;
