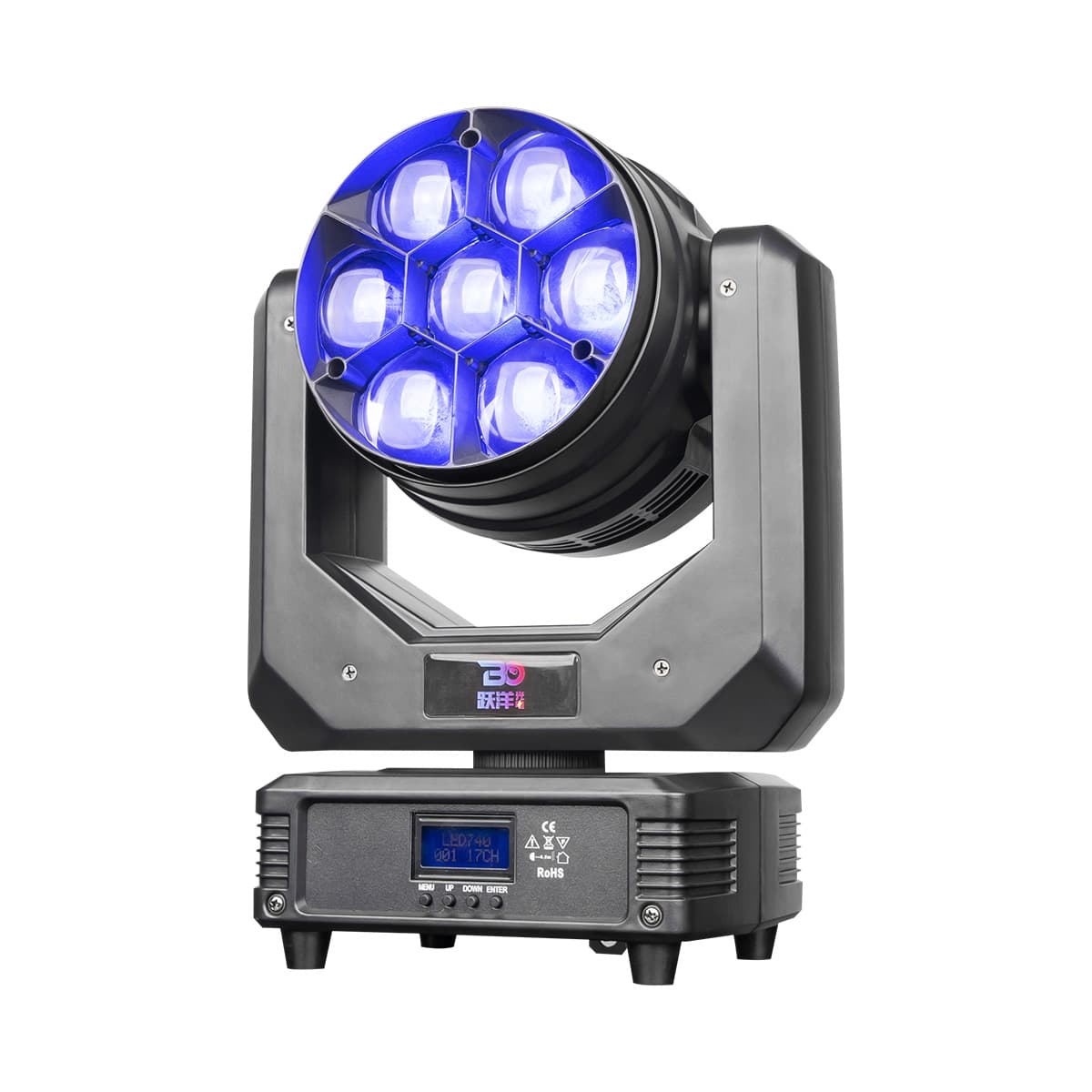

7x40W Mini Wash Zoom

Unleash dynamic lighting with this ultra-light 5.5kg fixture! Equipped with 7x40W RGBW LEDs, it delivers vibrant washes, sharp beams, and smooth macros via motorized zoom (6°–45°).
Perfect for mobile setups, its 6-in-1 flight case (69kg) and global 100–240V compatibility streamline tours from clubs to stages.

Why Choose It:

  • Simplified Control – 22 DMX channels (RDM-ready) + LCD menu for strobes, dimming, and color macros.
  • Silent Power – 250W output + flicker-free operation ideal for weddings, theaters, and broadcasts.
  • Scalable Rigging – Chain 8 units @240V + 16-bit pan/tilt (540°/270°) for immersive motion.
  • Budget-Friendly – IP20 durability + featherweight design slashes transport/energy costs.

Ideal For: DJs, event planners, and venues needing wide beam versatilityplug-and-play setups, and studio-quality effects in a palm-sized package.



Read More: Beyond 740Z: 7x40W Mini Wash Zoom

Beyond 740Z

7x40W Mini Wash Zoom

Light Source: 7*40W 4 in 1 RGBW LED

LED Lifetime: ≥ 50000H

Power Voltage: AC100-240V, 50- 60Hz

Power Consumption: 250W

Beam Angle: 3.5°-45°

Control Modes: DMX512/ Auto/ Sound/ Master-Slave/ Manual/ RDM

DMX Channel: 17/ 22 Channel

Protection Rating: IP20

Display: LCD Display

Data In/Out Socket: 3-pin XLR sockets

Power Socket: Power-Con in/ out

Housing Material: ABS High temperature resistant plastics

Pan: 540° accuracy 2.11°/step, fine-tuning accuracy: 0.008°

Tilt: 270° accuracy 0.86°/step, fine-tuning accuracy: 0.0034°

Pan/Tilt Resolution: Automatically correct pan/tilt position

MAX. Connection: 8 units(240V,50Hz) 1.5mm²  power cable; 4 units(100V,60Hz) 1.5mm²  power cable;

Dimension: 258mm×178mm×343mm

Net Weight: 5.2kg

Carton Package: 320*240*430mm    1in1  G.W.: 6.4kg; 660*500*445mm  4in1  G.W.: 27.5kg;

Flight Case: 620*585*655mm    4in1  G.W.: 48.27kg;

Features: Full light range dimming, 65536-level dimming accuracy. fast strobe 1-25 Hz.

Configuration: Signal cable 1pc; Power cable 1pc; Manual 1pc;

Beyond 740Z Dimensions

Beyond 740Z Mounting Dimensions
