Flagship 600W Profile Moving Light with CMY, CTO, and Precision Framing
Command total creative control over any grand stage.
Driven by a high-output 600W LED module (6800K) with an impressive 24,000LM flux, this professional 36-channel profile fixture features a large 138mm front lens for unparalleled brightness and uniform field distribution.
Engineered with a dual-mode CRI design (Standard Ra>70 / High CRI Ra>90), it delivers impeccable skin tones for HD broadcasting.

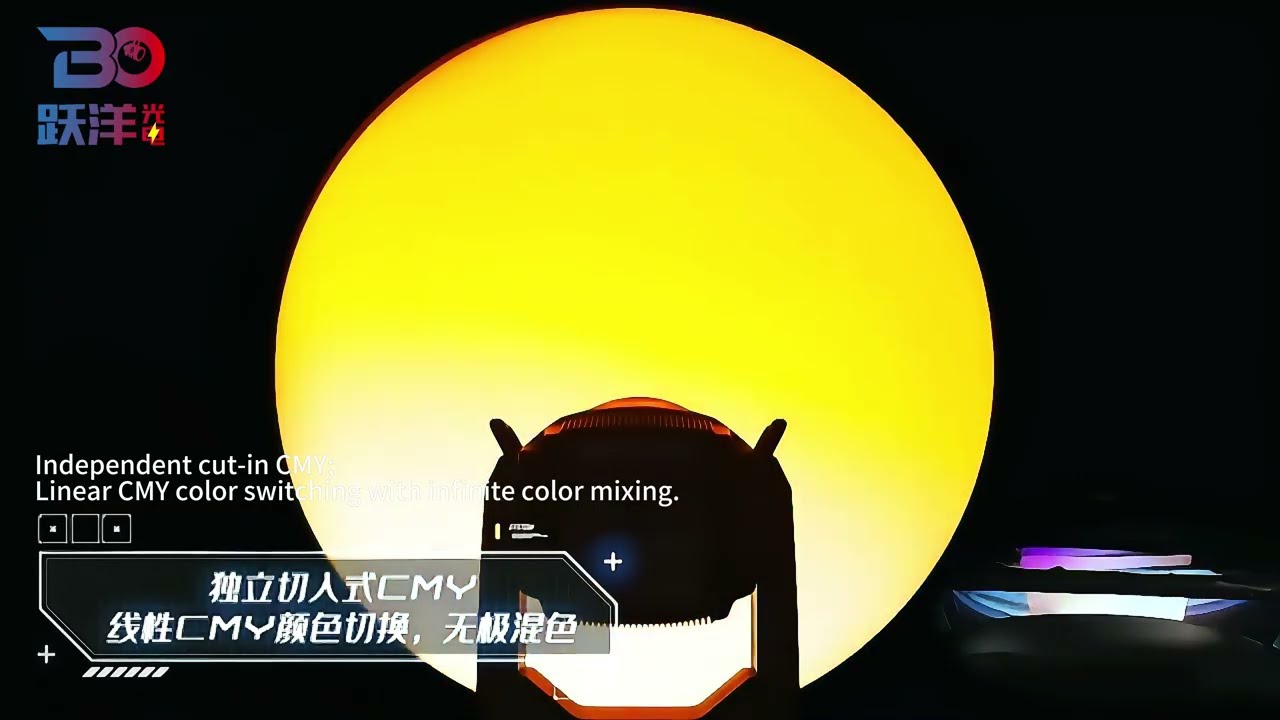

Its advanced independent CMY color mixing and linear CTO (2500K–7000K) color correction are paired with a 4-blade framing system—where each shutter can close completely and rotate ±90° for surgical beam shaping.
Boosting a massive 4.5°to 50° fast motorized zoom, dual gobo wheels, an animation effects wheel (dynamic flames/water effects), and a five-phase motor with magnetic encoding positioning, this 35KG powerhouse is the ultimate definitive fixture for premium theater, studio, and touring installations.
Input voltage: AC100-240V, 50/60Hz
Rated power: 900W
Light source: 600W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>70, high CRI mode Ra>90
Luminous flux: 24000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-7000K linear adjustment
Prisms: Rotating 3-faced prism
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 7 fixed gobos+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 22.9mm, effective diameter 16mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16-bit precision scanning)
Tilt: 270° (16-bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45℃
Product size: 424*286*770(mm)
Carton size: 730*690*590 (mm)
Product net weight: 35KG
Product gross weight: 4.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp
